Pre-Op 1

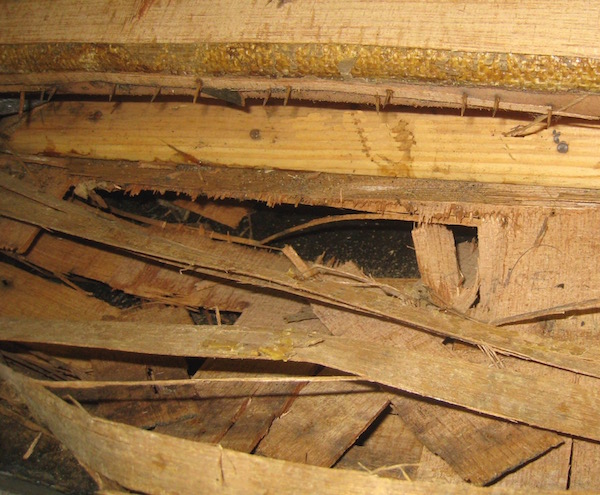

This photo shows rather too well the delamination of the plywood of the inner door panels. The kicking strip/carpet which is laid along the base of the doors to a height of 4 inches has been folded back on itself at the top of the photo.

Stacks Image 7882

Pre-Op 2

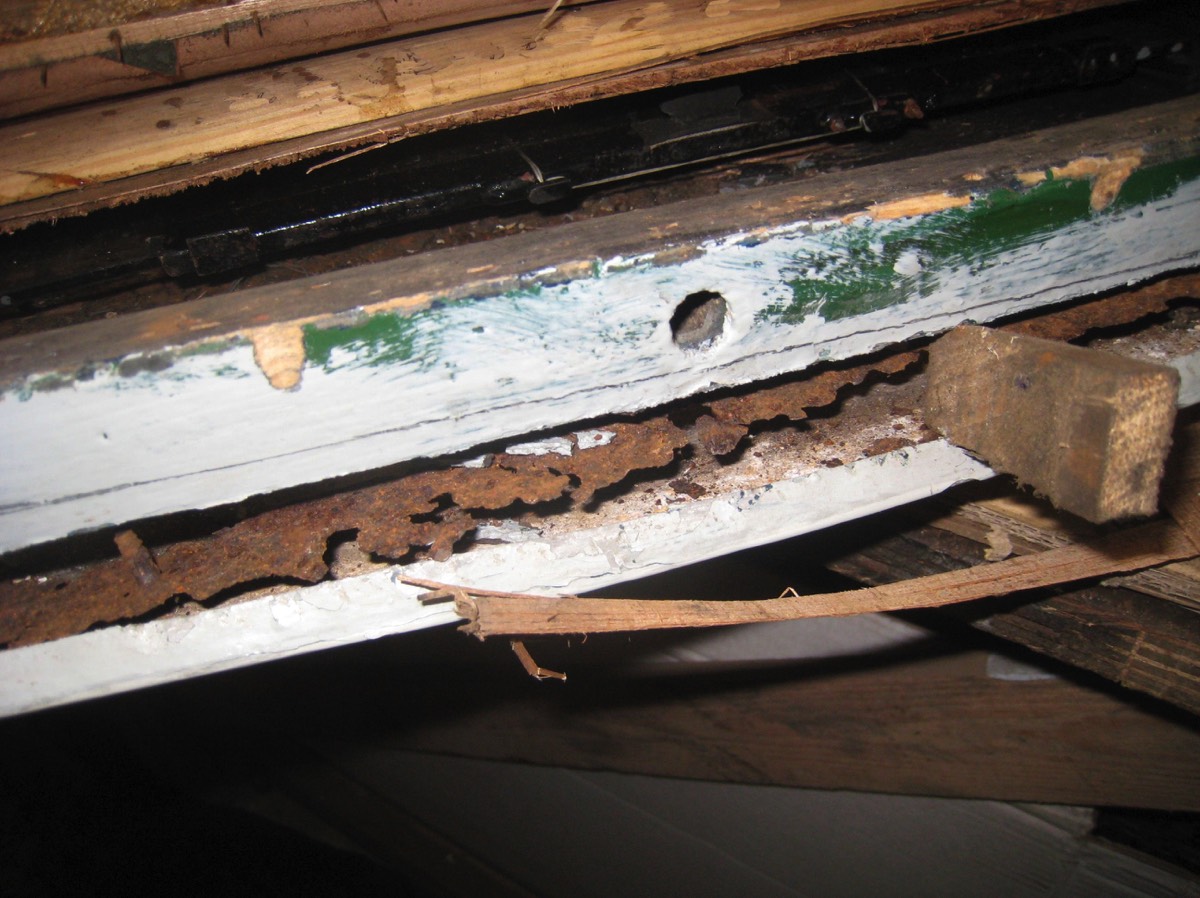

This shows the drain hole in the bottom of the frame, which is a very sound door frame, but you can see the poor state of the mild steel metal strip which is screwed on to the frame and to which the aluminium door skin should attach.

Stacks Image 8027

Surgery 1

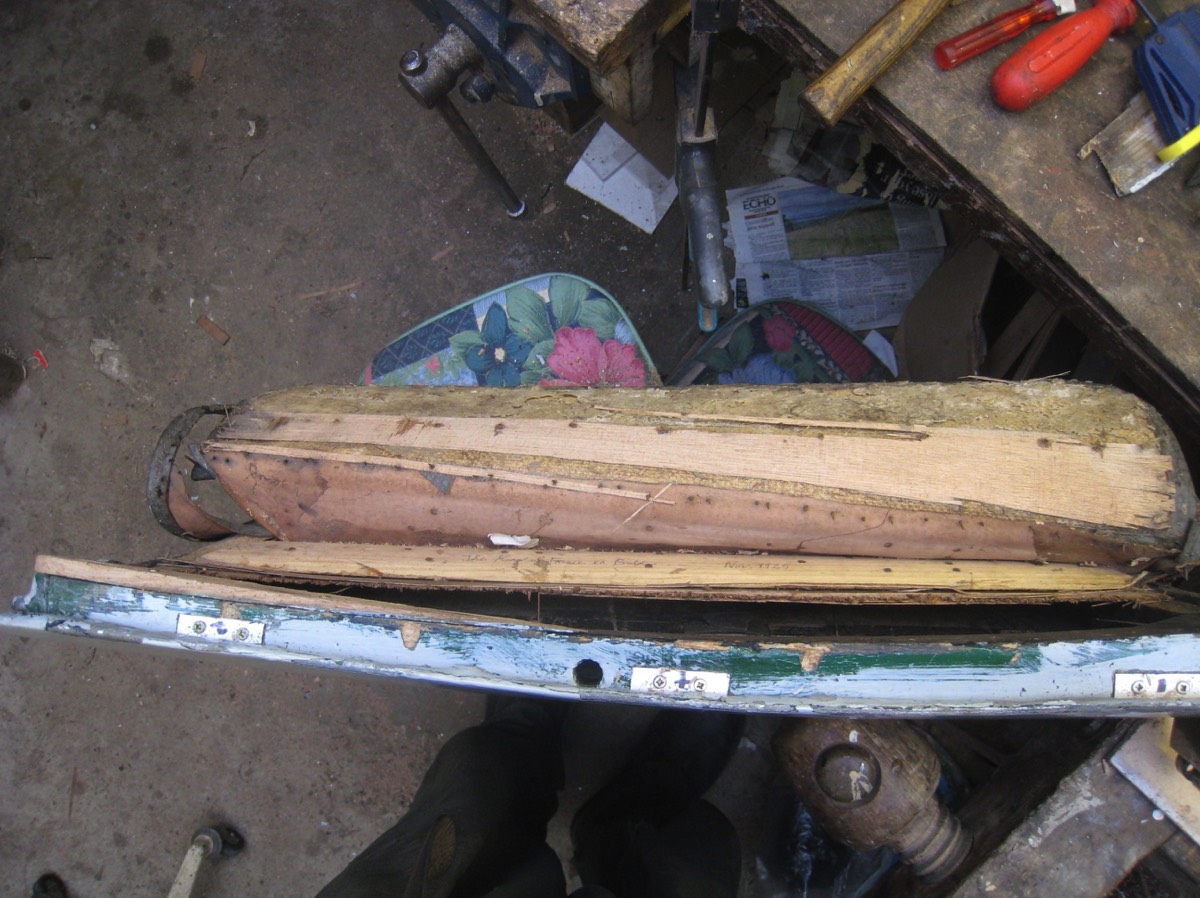

The patient on the operating table;  the door is mounted in several clamps and vices with operating equipment laid out behind...and various dials which make it appear that the door is on a life-support system - I did say that Ray was very experienced!

Stacks Image 7998

Surgery 2

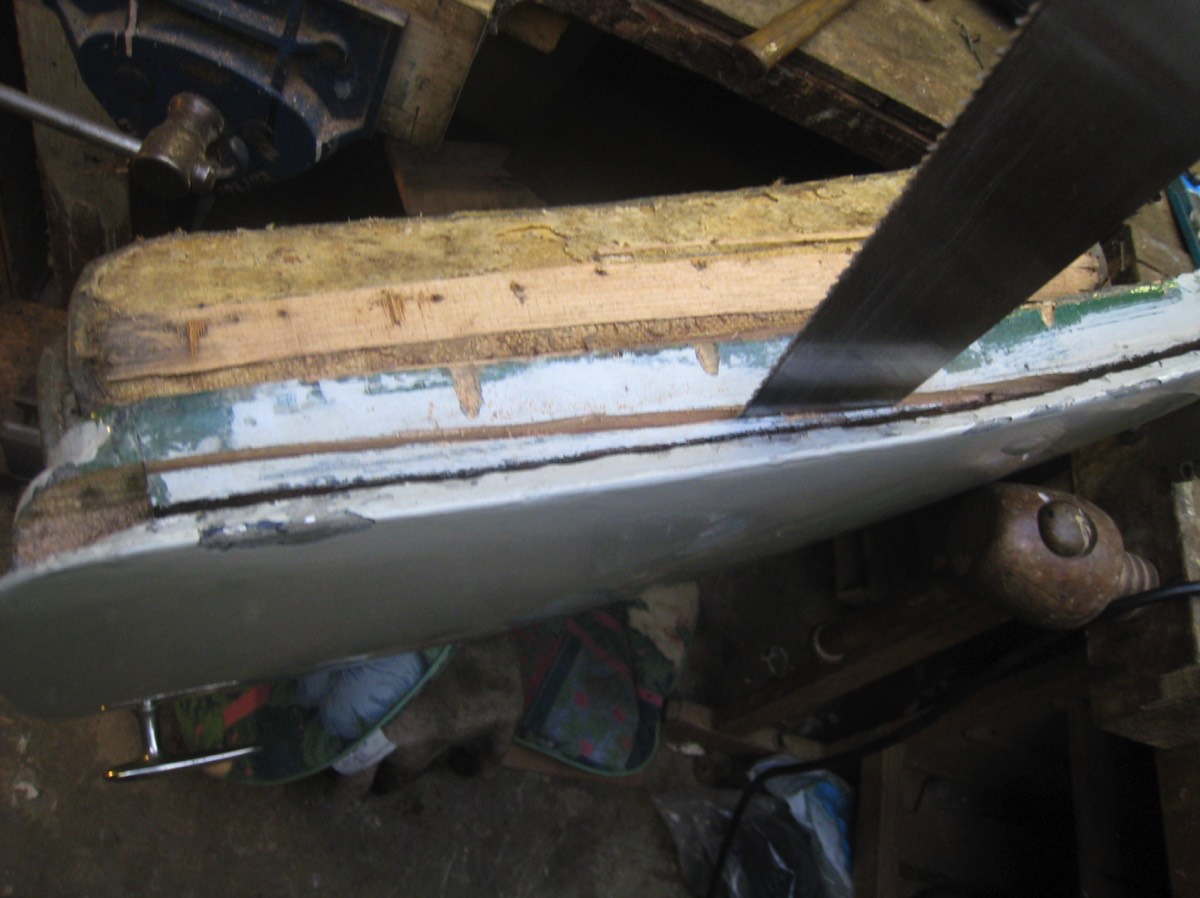

The first incisions  - just looking at these photos and writing about it reminds me too much of my dentist.

Stacks Image 7969

Surgery 3

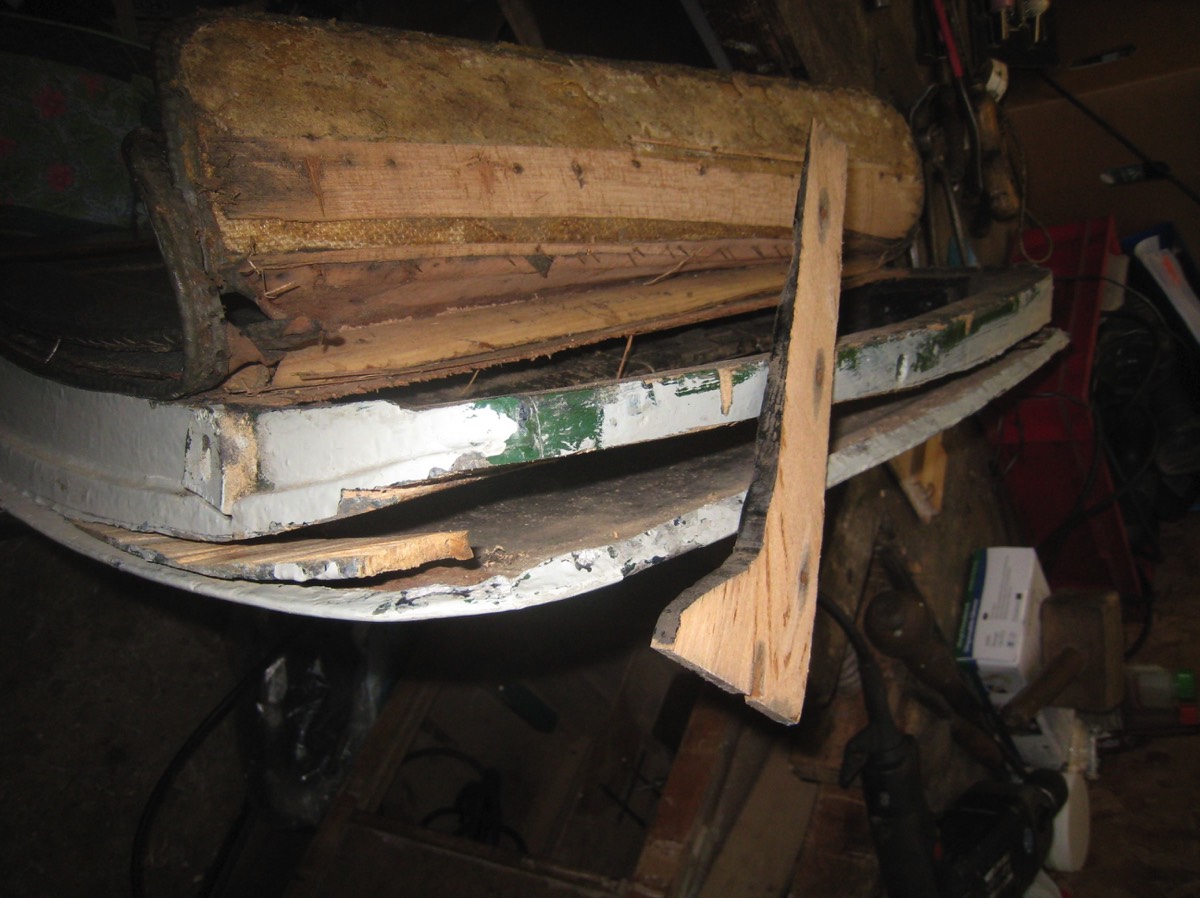

What do we do with this bit? This has been cut off the base of the door; the thinner part of the piece of wood is the leading edge of the door frame.

Stacks Image 7940

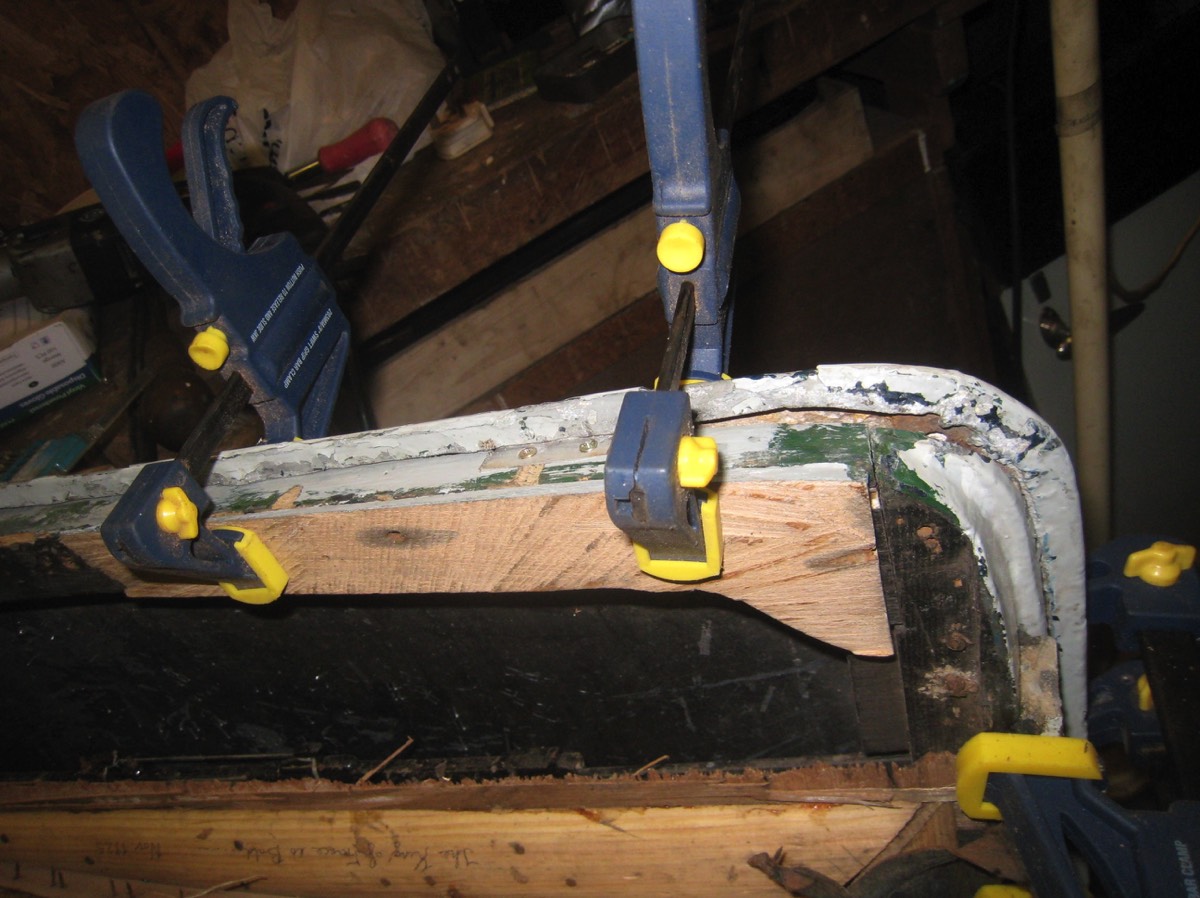

Surgery 4

Transplant complete;  and the piece of wood which was on the outside curvature of the door is now being clamped to the inside of the frame. Result - the frame is the same thickness but now it’s the correct shape!

Stacks Image 7911

Surgery 5

...and now the equivalent of the dressings;  small aluminium brackets have been made to attach to the door frame in place of the old rusty pieces of metal - their positions are adjustable.

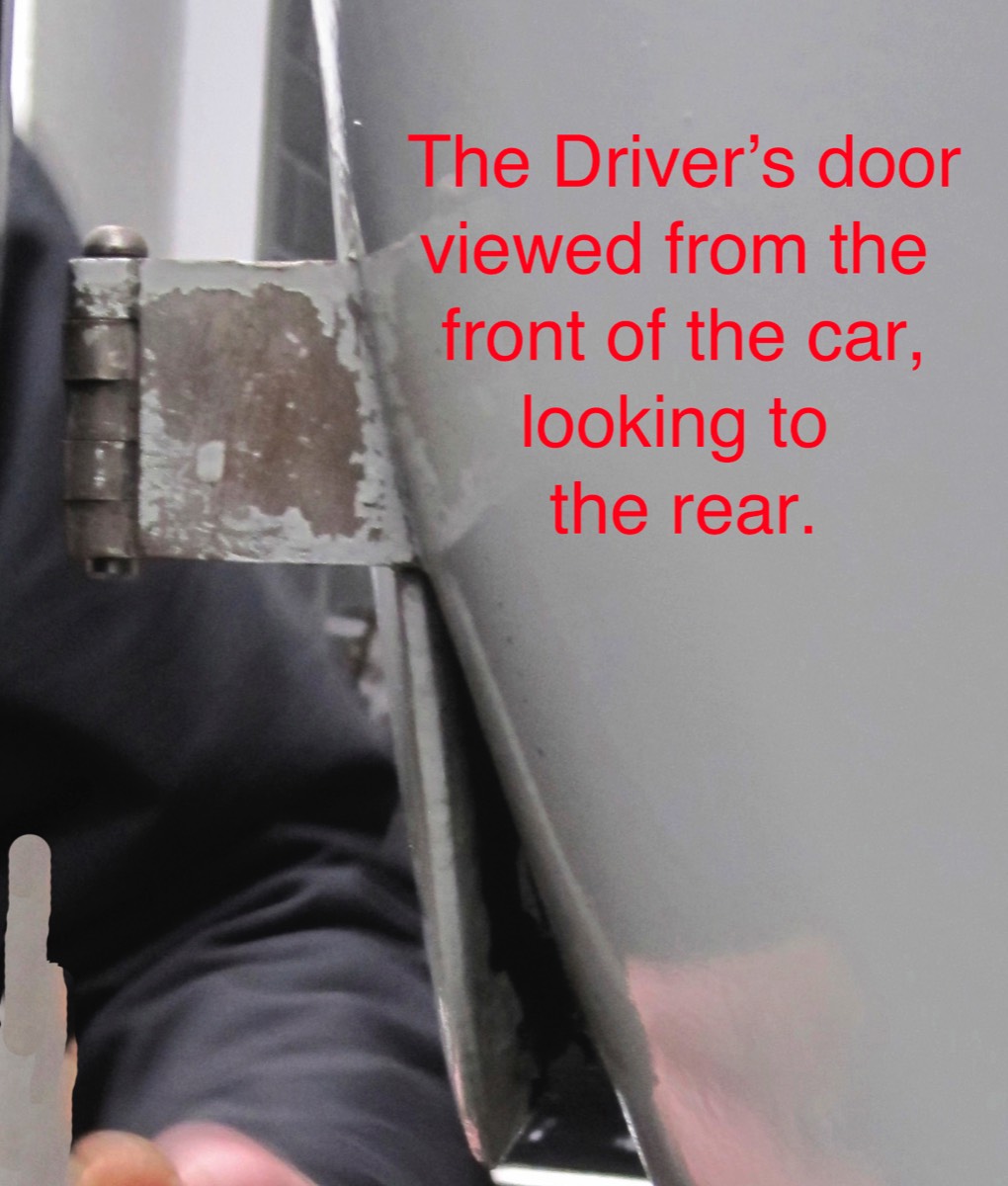

Driver's door

Stacks Image 8038

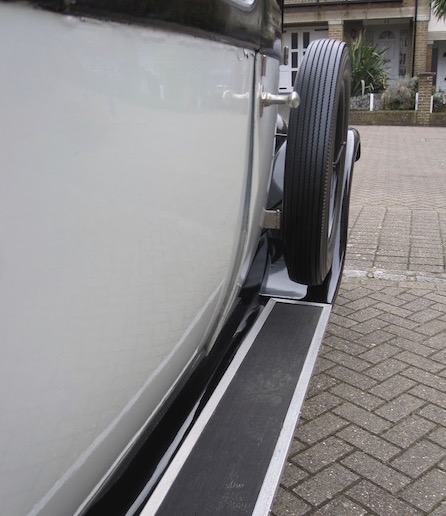

BEFORE - Offside
Stacks Image 8044

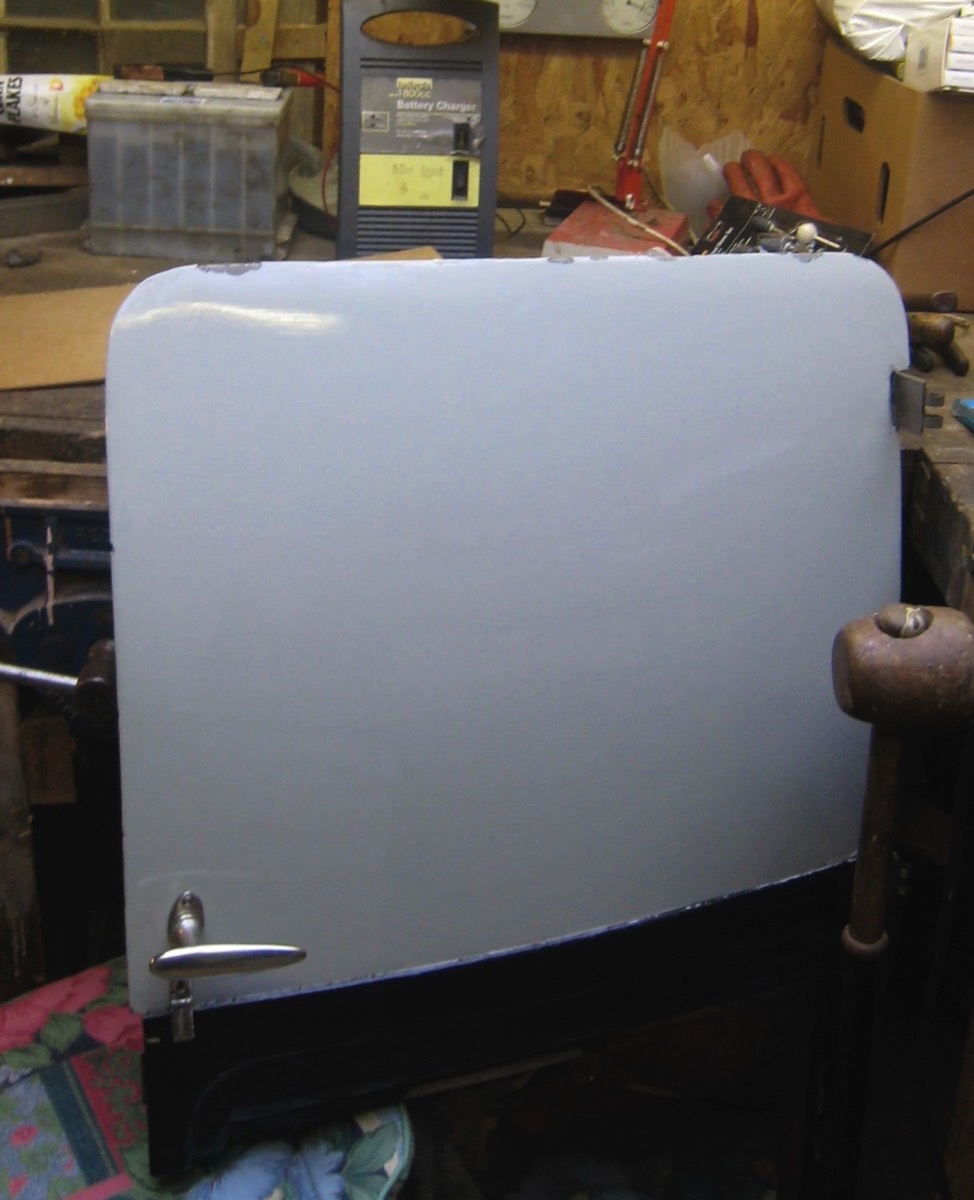

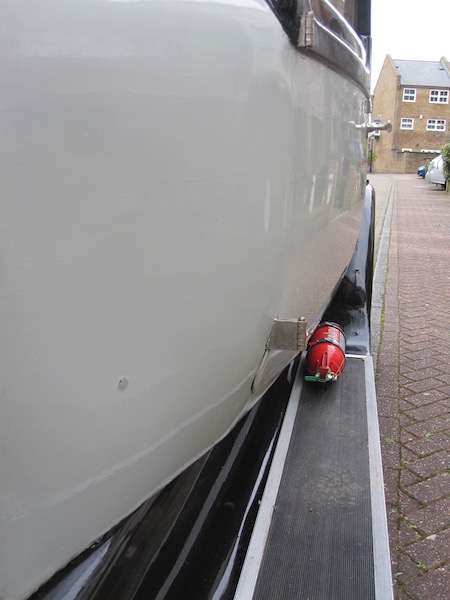

AFTER - Offside

Passenger's door

Stacks Image 8040
BEFORE - Offside
Stacks Image 8042

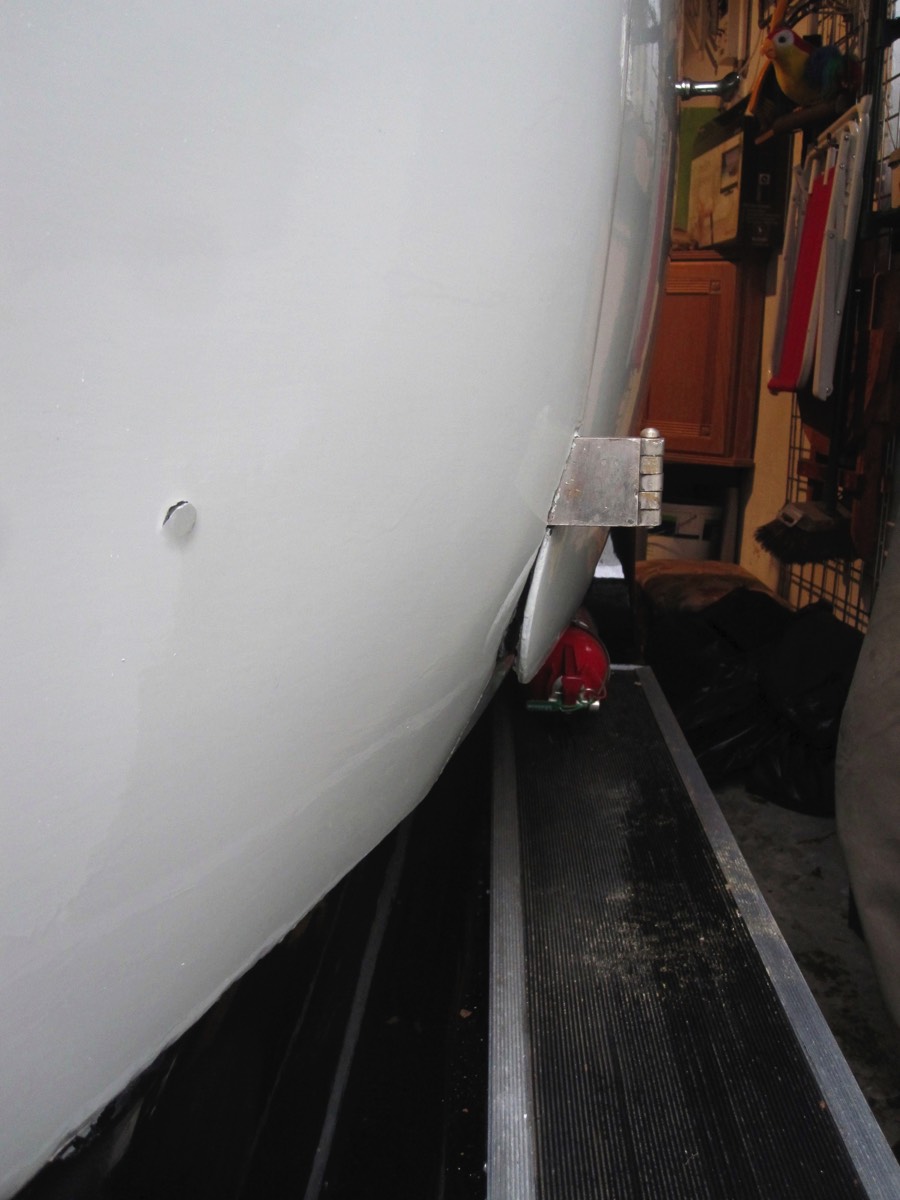

AFTER - Offside

There is slightly more patina in the paintwork where a couple of old screws have pushed against the aluminium but unless I go to Specsavers that should be the least of my problems!
